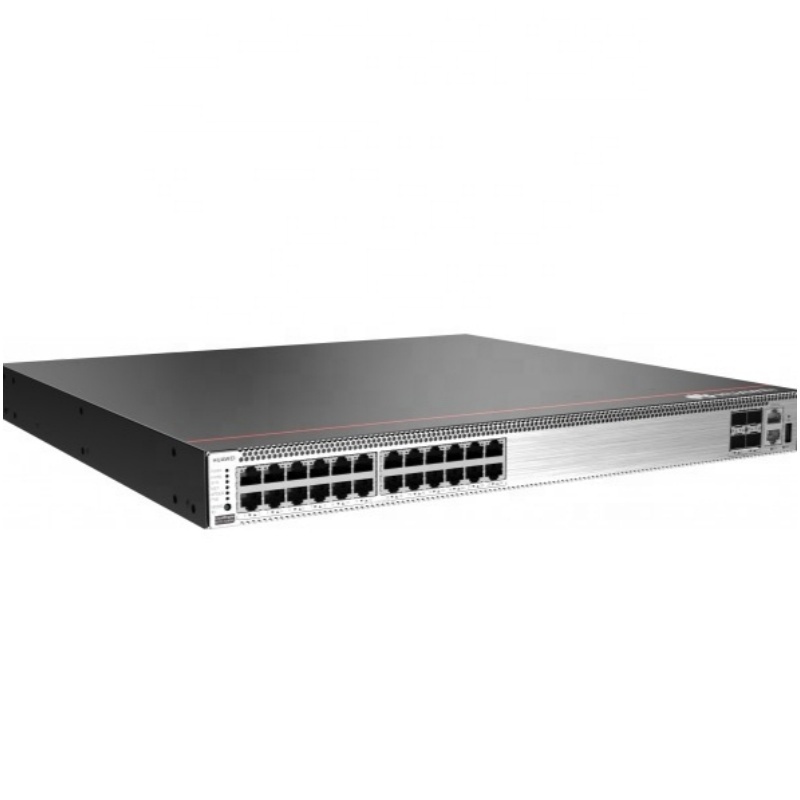

New Original S5731-S24P4X S5700 Series 24 PoE+ Ethernet Electrical Ports and Four 10GE SFP+ Optical Ports Switch

Memory (RAM)

2 GB

Flash

1 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

57.21 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

• Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
• Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

• Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)

Weight (with packaging)

8.6 kg (18.96 lb)

Stack ports

10GE SFP+ ports on the front panel

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

Maximum voltage range

Maximum power consumption (100% throughput, full speed of fans)

• Not providing the PoE function: 121 W
• 100% PoE loads: 977 W (PoE: 720 W)

Typical power consumption (30% of traffic load, tested according to ATIS standard)

95 W
