EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

MOQ : 2 pieces

Price : CN¥938.18/pieces >=2 pieces

private mold : NO

products status : Stock

ports : ≤ 8

transmission rate : 10/100/1000Mbps

function : POE

communication mode : Full-Duplex & Half-Duplex

switch capacity : /

brand name : /

model number : EDS-2018-ML Series

place of origin : Shanghai, China

Product Name : Switch

Condition : 100% Orginal

MOQ : 1pc

Warranty : 5 Years

Contact Now

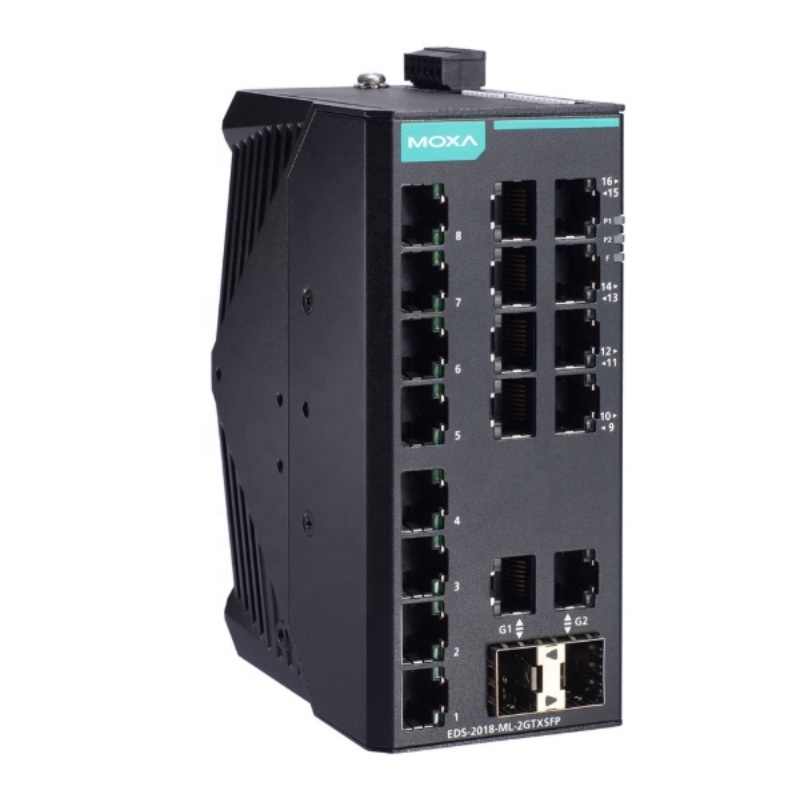

New Original EDS-2018-ML Series 16+2G-port Gigabit unmanaged Ethernet switches

Product Description

Features and Benefits
2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation QoS supported to process critical data in heavy traffic Relay output warning for power failure and port break alarm IP30-rated metal housing Redundant dual 12/24/48 VDC power inputs -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	16 Auto MDI/MDI-X connection Full/Half duplex mode Auto negotiation speed
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)	2 Auto negotiation speed Auto MDI/MDI-X connection Full/Half duplex mode
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.1p for Class of Service
Switch properties
MAC Table Size	8 K
Packet Buffer Size	4 Mbits
Processing Type	Store and Forward
Power Parameters
Connection	1 removable 6-contact terminal block(s)
Input Current	0.277 A @ 24 VDC
Input Voltage	12/24/48 VDC Redundant dual inputs
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Weight	683 g (1.51 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

Our advantage

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches
