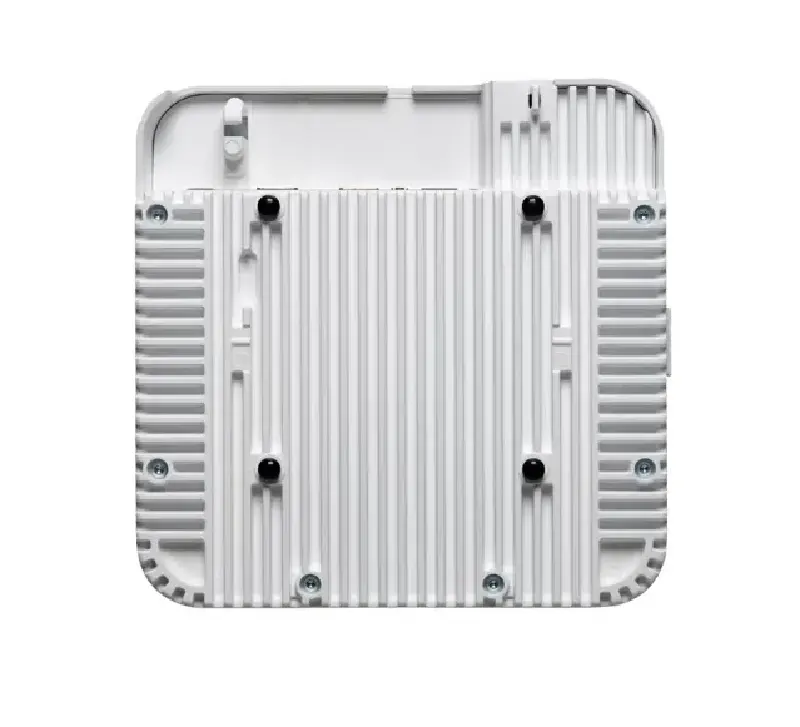

Customized 9120AX Series C9120AXI-H Access Points Internal Antenna Wifi 6 ethernet wireless AP

private mold : NO

products status : Stock, Used

brand name : /

place of origin : Shanghai, China

Product name : C9120axi-h

Size : Customized Size

Color : Customizable

MOQ : 2 pieces

Price : CN¥4,545.44/pieces >=2 pieces

Contact Now

Product Description

Customized 9120AX Series C9120AXI-H Access Points Internal Antenna Wifi 6 ethernet wireless AP

Description	9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain
Software	Unified Wireless Network Software Release 8.9.x or later IOS ® XE Software Release 16.11 with AP Device Pack, or later
Supported wireless LAN controllers	9800 Series Wireless Controllers 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac	4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support
Smart Antenna Connector	Available on the 9120E and on the 9120P only Compact multi RF connector with DART interface Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio
Interfaces	1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz Management console port (RJ-45) USB 2.0 @ 3.75W (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)
Private Mold	NO
Uplink Interfaces	4x 1G SFP uplinks Switche
Power Supply	250WAC
Dimensions (W x D x H)	8.5 in. (21.59 cm) Depth 9.06 in. (23.01 cm) Height 1.58 in. (4.02 cm)
Weight	12KG
MOQ	1
Condition	Brand-new
Warranty	1 Year
